| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date and Builder/Engineer | |
|---|---|---|---|---|---|
|
Aldrich Change Bridge
| Park Path Over Park Land | Palmyra: Wayne County, New York | Metal 7 Panel Pin-Connected Parker Pony Truss, Fixed | 1858 By Builder/Contractor: Mohawk and Hudson Iron Works of Waterford, New York (G.W. Eddy Foundry) |
| Technical Facts |
| Main Span Length | Structure Length | Roadway Width | Main Spans |
| 72.4 Feet (22.05 Meters) | 72.4 Feet (22.05 Meters) | 13.3 Feet (4.06 Meters) | 1 |
The HAER page for this bridge provides an extensive history on this bridge. Be sure to read it for more information on this bridge. This is one of the oldest metal bridges in the country, and is one of the earliest known examples of a Parker truss bridge.
The Aldrich Change Bridge is a bridge that has certainly been through a lot. Moved several times, washed off its abutments once, and finally restored here in a park setting, it is amazing that this bridge, one of only two bridges from the original Erie Canal, remains here today.
Why Aldrich "Change" Bridge? Because this bridge was built to change the side of the canal that the mule(s) towing the boats navigating the canal would need to be on. There were any number of reasons why the tow path might need to change the side of the canal it was on.

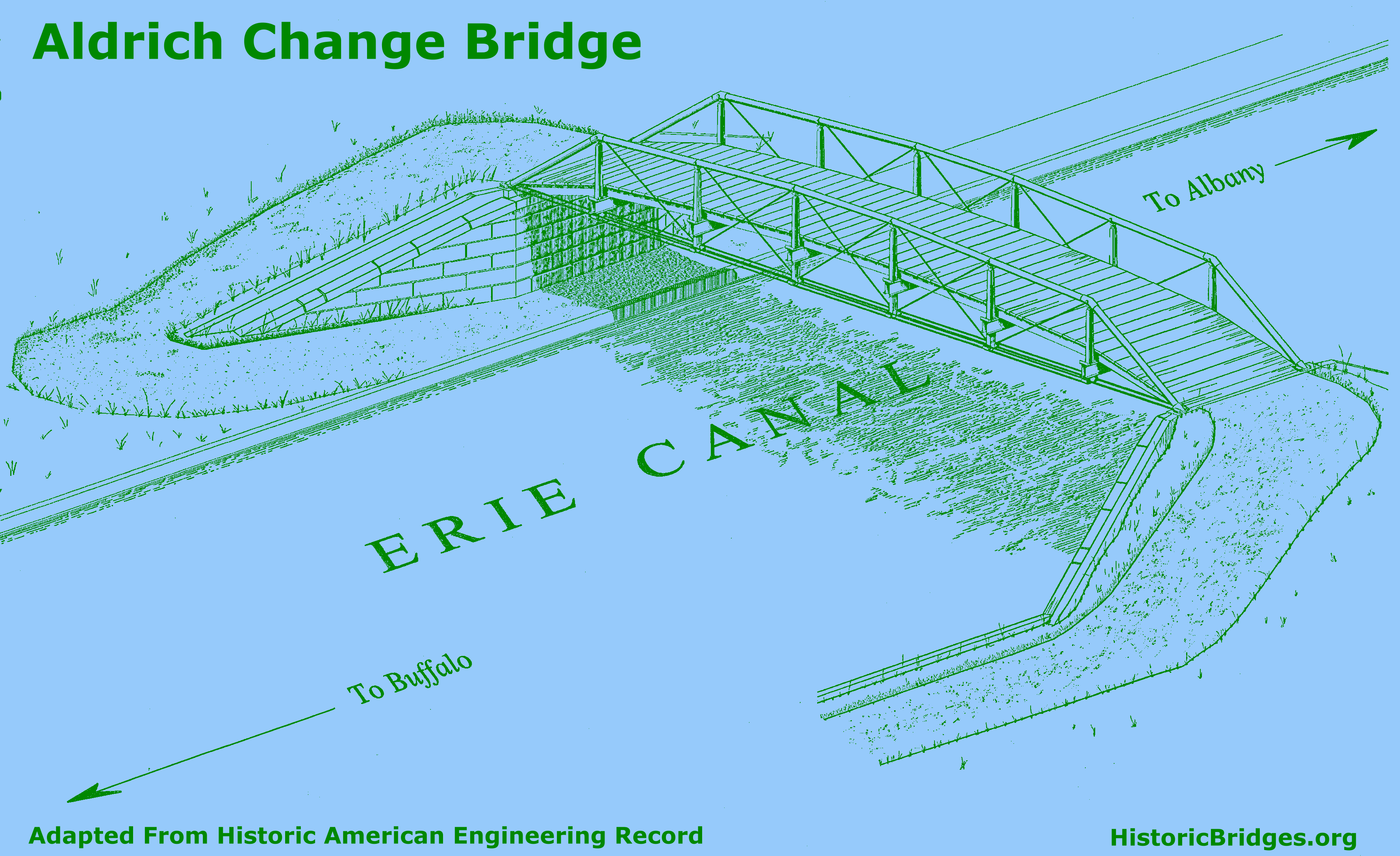

The placement of the bridge in the park was designed to showcase the way the bridge would have original functioned, although no water is actually present under the bridge, the setup of the approach to the bridge is authentic to the way the bridge would have been seen when in service on the canal. The drawing below adapted from the Historic American Engineering Record helps to illustrate the original configuration of the bridge.
Click on a thumbnail or gallery name below to visit that particular photo gallery. If videos are available, click on a video name to view and/or download that particular video.
|
Bridge Photo-Documentation
Original / Full Size Photos |
A collection of overview and detail photos. For the best visual immersion and full detail, or for use as a desktop background, this gallery presents the photos for this bridge in the original digital camera resolution. |
|
|
Bridge Photo-Documentation
Mobile Optimized Gallery |
A collection of overview and detail photos. View the photos for this bridge in a reduced size which is useful for mobile/smartphone users, modem
(dial-up) users, or those who do not wish to wait for the longer
download times of the full-size photos. Alternatively, view this photo gallery using a popup slideshow viewer (great for mobile users) by clicking the link below.
Browse Gallery With Popup Viewer |
