| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date and Builder/Engineer | |
|---|---|---|---|---|---|
|
Pleasant Valley Road Bridge
| Pleasant Valley Road (CR-85) Over Chagrin River | Rural: Lake County, Ohio | Metal 11 Panel Pin-Connected Whipple Through Truss, Fixed | 1881 By Builder/Contractor: Wrought Iron Bridge Company of Canton, Ohio |
| Technical Facts |
| Rehabilitation Date | Main Span Length | Structure Length | Roadway Width | Main Spans | NBI Number |
| 2009 | 163 Feet (49.7 Meters) | 167 Feet (50.9 Meters) | 15.4 Feet (4.7 Meters) | 1 | 4370554 |

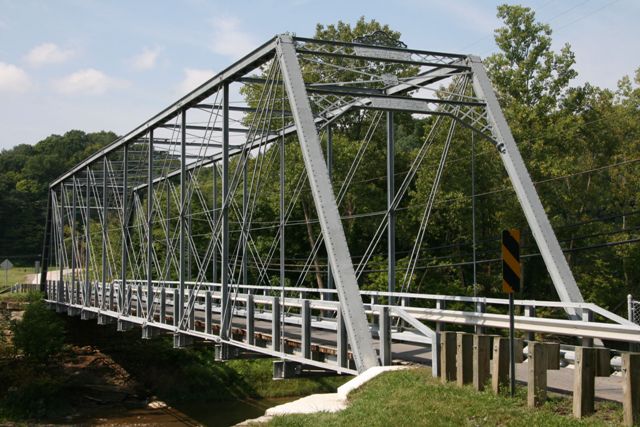

This bridge is an example of the Wrought Iron Bridge Company earlier design for a large span Whipple truss. It has been rehabilitated for continued vehicular use at the expense of historic integrity and alteration. Floorbeams, pins, and other elements are not original. Many rivets were replaced with high strength bolts. An interesting feature of the rehabilitation was that it was galvanized instead of painted. The silver/grey color created by galvanization is not offensive, and indeed its lighter color helps bring the truss bridge details out. The bridge is rare as an example of a Whipple truss, and also the last remaining highway truss in Lake County, Ohio.
Information and Findings From Ohio's Historic Bridge InventoryPhysical Description The bridge is a 1-span, 167'-long, double-intersection Pratt (Whipple) truss. It is composed of built-up compression members and eye-bar or rod tension members. There are lattice portals with builders plaques and a decorative shield displaying the date of construction. Integrity Rehabilitated in 2006. Summary of Significance The 1881 double-intersection Pratt (Whipple) truss bridge is a technologically significant example of its type/design fabricated by the Wrought Iron Bridge Co., a prominent Ohio fabricator. It was sensitively rehabilitated in 2006. The eligible recommendation of the prior inventory remains appropriate. Justification There are at least 14 examples of the bridge type important to the development and maturation of the pin-connected thru truss bridge. They date from 1881 and concentrate in the 1880s. Even though there are more than 12 extant examples in Ohio, each built in the 1880s has high significance based on overall scarcity (everywhere but in Ohio) of the design. This is a major and technologically significant bridge type. The bridge has high significance. Bridge Considered Historic By Survey: Yes |
