| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date and Builder/Engineer | |
|---|---|---|---|---|---|
|
Maclay's Mill West Bridge
| Maclays Mill Road (PA-4018) Over Conodoguinet Creek | Rural: Franklin County, Pennsylvania | Stone Segmental Deck Arch, Fixed | 1827 By Builder/Contractor: Silas Harry of Chambersburg, Pennsylvania |
| Technical Facts |
| Main Span Length | Structure Length | Roadway Width | Main Spans | NBI Number |
| 30.8 Feet (9.4 Meters) | 102 Feet (31.1 Meters) | 16.4 Feet (5 Meters) | 3 | 28401800700000 |

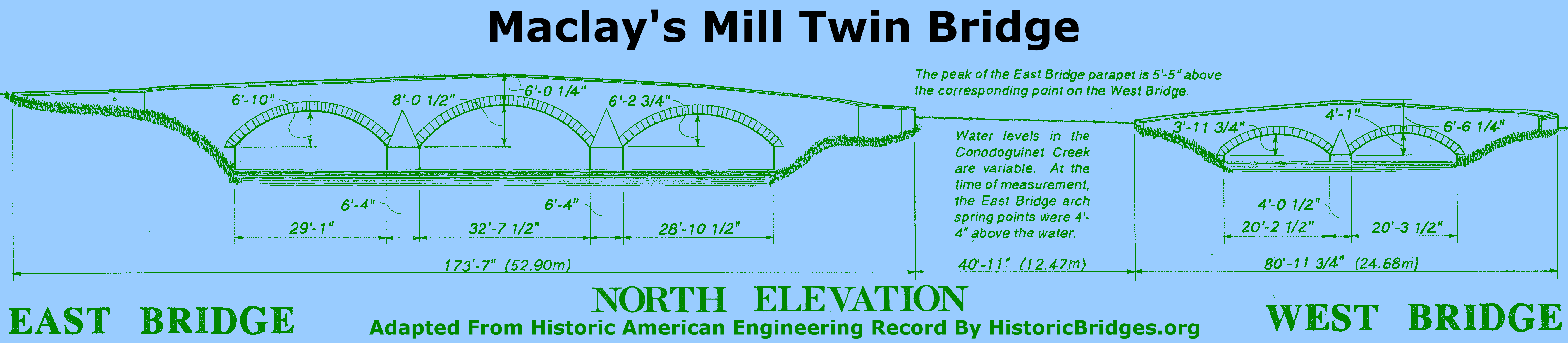

This bridge is the larger of two ancient stone arch bridges on this section of road. The bridges are significant for their very old construction dates, and for their good historic integrity. Be sure to review the Historic American Engineering Record documentation for a detailed discussion.
The bridges were built by Silas Harry. A number of the oldest stone arch bridges in Pennsylvania and Maryland are attributed to Silas Harry indicating that he was a prolific builder, and also built structures designed to stand the test of time.
Information and Findings From Pennsylvania's Historic Bridge InventoryDiscussion of Bridge The 3-span, 102'-long stone arch bridge is listed in the National Register. It is one of a pair of bridges at this crossing (28 4018 0062 0000) known as McClays Twin Bridges. There has been no change in the bridge's status since the previous survey. The bridge has dressed voussoirs, bullnose piers, and fieldstone spandrel walls and wingwalls with parapets. Alterations prior to the previous survey include grapevine repointing and pargetted intrados. Discussion of Surrounding Area The bridge carries a 2 lane road over a stream in a rural area of active farms. Bridge Considered Historic By Survey: Yes |
