Exchange Street Bridge

Joseph A. Scapelliti Memorial Bridge, Bridge E-230

Exchange Street Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: May 13, 2004

View Photos
and Videos
View Maps
and Links

Facility Carried / Feature Intersected
Exchange Street Over Erie Canal (New York State Barge Canal)
Location
Lockport: Niagara County, New York: United States
Structure Type
Metal Rivet-Connected Warren (No Verticals) Pony Truss, Movable: Vertical Lift and Approach Spans: Metal Deck Girder, Fixed
Construction Date and Builder / Engineer
1915 By Builder/Contractor: McMyler-Interstate Company of Cleveland, Ohio and W.S. Cooper Company of Cleveland, Ohio
Rehabilitation Date
2001
Main Span Length
99.7 Feet (30.4 Meters)
Structure Length
133.0 Feet (40.5 Meters)
Roadway Width
23.6 Feet (7.19 Meters)
Spans
1 Main Span(s) and 2 Approach Span(s)
Inventory Number
4454150

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Data Pages, PDF

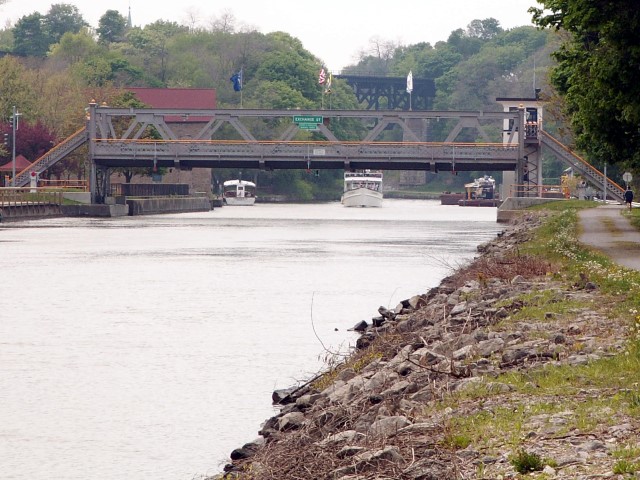

This bridge is an example of one of the Erie Canal's unique lift bridges. The above photo shows the bridge in a partially raised position. This particular example of these lift bridges has been rehabilitated. Overall, the rehabilitation was sensitive to the historic significance of the bridge, although typical alterations such the replacement of failed rivets with bolts, and modern metal guardrails have added to the roadway side of the trusses are present. Bricks still pave the roadway leading up to the bridge, but these are new. The bridge likely had older bricks leading up to it in a similar fashion prior to rehabilitation. The bridge retains original lattice railings for the sidewalks. The plaque shows the McMyler-Interstate Company of Cleveland Ohio as being the builders of the bridge in 1915. A portion of the plaque was cut out and a 1959 placed in the hole. While this is at first apparently an odd way of indicating that a rehabilitation or repair took place in 1959, the National Bridge Inventory does not reference a 1959 rehabilitation, and this number may instead be part of some old bridge numbering system.

Divider

Historic Bridges of the New York State Barge Canal including the Erie Canal and Other Canals and Waterways

The Erie Canal is one of the most famous and historically significant canals in the United States. Aside from the widely recognized historical significance of the canal as a transportation facility itself, a lesser known fact is that the canal is historically significant for the bridges that have spanned the canal over the years. It was here on the Erie Canal where Squire Whipple found a place to successfully get his "Whipple Arch" bowstring truss bridges constructed in significant quantities in the mid-1800s. The success of his Whipple Arch bridges helped contribute to the nationwide transition from wooden bridges to metal bridges. The period of time from 1905-1918 where the Erie Canal was upgraded and widened to become part of the larger New York State Barge Canal was a time of change for the bridges of the canal. Between the process of widening and upgrading the canal, and the nationwide trend to build more substantial bridges in the early 20th Century, the previous generation of bridges (many undoubtedly those Whipple Arch bridges) were replaced by a series of new bridges. These bridges have proved to be very durable and thanks to a clear commitment to preservation on the part of New York State Department of Transportation and other agencies, the Erie Canal and the New York State Barge Canal system, particularly the western section from Lockport to Spencerport boasts one of the highest densities of historic bridges of any waterway in the country. The vast majority of bridges on this section are maintained in beautiful condition.

Although the new bridges from the early 20th Century took a variety of forms, two forms were by far the most common. In rural or spacious areas, a fixed double-intersection Warren through truss was used, with a dirt approach providing the modest elevation needed for a fixed bridge over the canal. Double-intersection Warren truss bridges are generally considered an uncommon truss type on a nationwide basis. In urban and less spacious areas, a vertical lift bridge was used. The vertical lift bridges are an unusual design. Instead of towers that rise above the bridge in a traditional vertical lift bridge and pull the truss span up using cables, these bridges have vertical endposts which extend below the deck and into the ground. When operated, these extended endposts (called the lifting frame) rise out of the ground. In an engineering sense, these unusual vertical lift bridges might be thought of as bedstead truss bridges. Another unique feature of these lift bridges are the stairways found at each end of the bridge on the sidewalks. These stairways allow pedestrians to continue to cross the bridge when the structure is in the raised position. These vertical lift bridges continue to operate for boats today, so observing these unique bridges remains possible.

Elsewhere, the New York State Barge Canal System boasts other types of historically significant bridges.

View National Register of Historic Places Nomination Form for the New York State Barge Canal (Alternate ZIP Version In Sections) - Note this impressive document contains modern color photos of the bridges, some from unique angles, historical photos showing bridge construction, and original plan sheets for some bridges too.

View a HistoricBridges.org photo gallery of the historical photos, modern photos, and original plans contained in the National Register Nomination. This photo gallery can also be found in the Fairport Bridge's page.

View Historic American Engineering Record (HAER) Overview of Erie Canal Locks at Lockport, NY (Data Pages)

View Historic American Engineering Record (HAER) Index - Has a list of structures including bridges that were individually documented for HAER.

Erie Canal Museum

Erie Canalway National Heritage Corridor

Erie Canal History

Annual Reports on the New York State Barge Canal (Order By Fiscal Years): 1908, 1909, 1910, 1911, 1912, 1913, 1914, 1915, 1916, 1917, 1918, 1919, 1920, 1921

Story of the New York State Canals (1916)

New York State Barge Canal (1915 Overview of Project)
