| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date / Builder or Contractor |
| New Troy Bridge
Avery Road Bridge | Avery Road Over Galien River | New Troy: Berrien County, Michigan | Concrete 60 Foot Plan Curved Chord Through Girder, Stationary | 1923 By: W. Marshall and Sons of Grand Rapids, Michigan |
| Technical Facts |
| Structure Length | Roadway Width | Main Spans | Approach Spans |
| 60 Feet (18.1 Meters) | 20 Feet (6.1 Meters) | 1 | None |

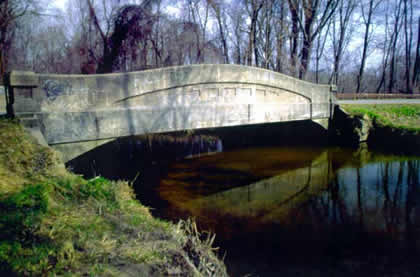

The New Troy Bridge is a gorgeous example of a 60 foot plan curved chord through girder bridge in a scenic location. Most exciting is the fact that this bridge has been preserved in a park setting where it can be enjoyed at leisure, while traffic now crosses on a nearby modern bridge on a new road alignment. This bridge is the McKeowen Road of Berrien County. In a county where the road commission has managed to obliterate nearly every other historic bridge in the county, a community stepped forward and saved this remaining bridge before it too could be demolished. Michigan has mostly ignored the national significance of each remaining concrete camelback bridge in the state, frequently demolishing the remaining bridges despite their obvious historic significance. These bridges are often needlessly demolished, as owners cite their narrow deck width as reason, ignoring many alternatives to demolition that may exist. The result here at New Troy is an example of one such alternative that is usually ignored that instead was implemented, resulting in a wonderful preservation story. The preservation of this bridge is a major and noteworthy accomplishment.
The bridge is actually almost impossible for northbound traffic on Avery Road to see from the new crossing, but it is there, and well worth a visit. The New Troy Bridge has the distinction of being the first of the small 60 Foot Plan curved chord through girder bridges to be preserved. Just because a bridge is not the largest or the oldest does not mean it has no historic value. Any bridge that has stood for over three quarters of a century certainly has something to contribute to understanding our transportation history. This bridge looks significantly different than the Mottville Bridge for example, although they are the same structural type. Each represents a separate part of our state's history. The Mottville Bridge represents the extraordinary, the largest of the bridge type ever built. The New Troy Bridge represents the mainstream of this bridge design, showcasing the more commonly built shorter spans, like this 60 foot plan design. Each have become rare today, because so many have been ruthlessly demolished, and as such each are historic and more than worthy of any preservation effort. The New Troy Bridge has the added attraction of being a small, quaint bridge that fits well into the small park created around it. Any of Michigan's curved chord through girders offer excellent aesthetic value. The graceful curved design of the bridge, coupled with the simple yet complimentary square designs embossed in the girder form a unique bridge design that is a stark contrast to modern bridges, such as the mundane bridge that currently serves Avery Road next to this historic bridge.
This bridge was built as a State Reward Bridge. Although the plaque no longer remains on the bridge, it was likely similar to that seen on the Yale Road Bridge.
The people of New Troy and Weesaw Township deserve to be thanked for preserving this irreplaceable part of Michigan's transportation heritage. Because of their efforts, future generations will be able to enjoy the beauty and history of this bridge type that played such an important role in the early development of standardized highways in Michigan. This bridge is only four miles from I-94 Exit 12, and as such it is an easy stop for anyone to take a break from driving to Detroit or Chicago or some other place.
Information and Findings From MDOT
The bridge site is located at about the mid-point of the Galien River, near the small village of New Troy. The river, which has its source near Galien, flows in a northerly route towards New Troy, where the east branch of the Galien River joins the main branch just south of the village. Shortly after the convergence, and just east of the bridge, stands a vacant mill once powered by the river. From the bridge site, the river flows in a southwesterly direction to New Buffalo, where it drains into Lake Michigan. A map from 1860 shows that only a small number of roads, including those known as Avery and Glendora roads today, were located in the township. The appearance of a bridge or ford on the map suggests the Avery Road location has been a river crossing since at least that time. With the increased use of the automobile, the early 1920s were a period of great public demand for better roads. Berrien County Road Commission minutes show that bonds were issued for "paving, etc." of Avery Road on 25 March 1921. Road plans, dated July 1922, show a structure at the site of the current bridge which appears to be one lane. Although no mention of a new bridge can be found on the plans, it seems likely that any necessary bridge work would have been completed concurrently with the road improvements. An Historic Bridge Inventory Form completed in 1982 shows 1928 as the date of construction. Since no mention of the bridge can be found in Road Commission minutes from 1926 to 1929, this date appears to be incorrect. The Tenth Biennial Report lists a State Reward Bridge, built by "W. Marshall & Son," of the same type and size and in what appears to be the same location. Since the report covers the biennial period from 1 July 1922 to 30 June 1924, it appears that the bridge was built within that period. Hand-written field notes in the bridge files of the Berrien County Road Commission indicate that a bridge plate (since removed) named "W. Marshall and Sons, Grand Rapids, Mich." as the contractor of the Avery Road Bridge. The plate also noted that it was a "State Reward Bridge, Built Jointly by State Highway Department, Frank F. Rogers, Commissioner; [and the] Board of Berrien County Road Commissioners." This corroborates the circa 1923 construction date. |
The Avery Road Bridge is
eligible for nomination to the National Register as an excellent example
of a 60-foot, curved-chord, through-girder bridge built according to
state standard plans. Since the road it carries was constructed in 1922,
it is probable that the bridge was also built that year, making the
bridge the oldest example left. Due to attrition, relatively few
examples of this bridge type are still standing, with an even smaller
number of those in good physical condition.
