| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date / Builder or Contractor |
| Broadway Street Bridge | Broadway Street (PA-2004) Over Casselman River | Meyersdale: Somerset County, Pennsylvania | Metal Stringer, Stationary | 1951 By: Unknown |
| Technical Facts |
| Rehabilitation Date | Structure Length | Roadway Width | Bridge Width | Main Spans | Approach Spans |
| 2006/2007? | 147 Feet (44.8 Meters) | 26 Feet (7.9 Meters) | 34 Feet (10.36 Meters) | 2 | None |

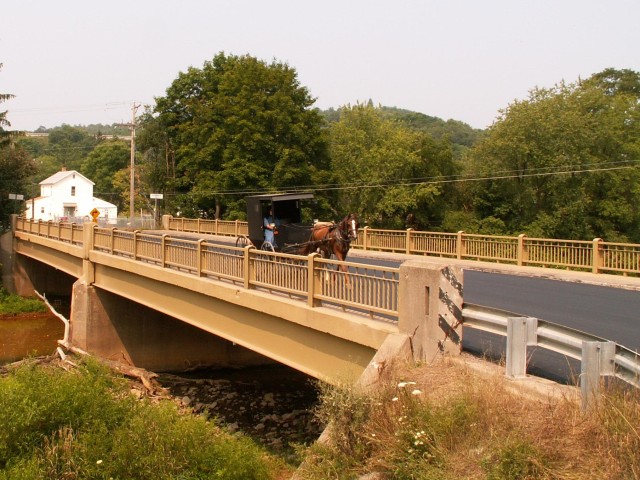

This bridge is an excellent example of a common style that Pennsylvania used for its bridges in the 1950s. The state's own unique style of railing is well-represented here and remains unhindered with no modern railing additions.
The Historic Bridge Inventory found the bridge non-historic. However, the SHPO appears to have found it eligible as part of the historic district, even though it falls out of the 1870-1930 district period of significance. Historic Bridges of Michigan and Elsewhere agrees with the SHPO's finding. Even if it falls out of the period of significance, it is worth noting that a 1950s bridge would fit in a historic district more so than a 2008 bridge would, and thus its preservation should still be considered.
Fortunately, the bridge appears to have been recently rehabilitated, and it appears to be in excellent condition and retains excellent historic integrity. This recent rehabilitation is quite unusual for PennDOT, which more often chooses to demolish aging bridges rather than save money and history by maintaining the existing bridge.
Information and Findings From Pennsylvania's Historic Bridge InventoryDiscussion of Bridge The 1951, 2 simple span, 147'-long, steel stringer bridge is supported on concrete abutments with wingwalls and a concrete pier. The bridge has a concrete filled steel grid deck and period steel railings with vertically scored concrete endposts. It is not individually significant as it is a late example of the most common 20th century bridge technology in the state. It is located on what is a boundary of the PHMC-determined eligible historic district, but it was built well after the ca. 1870-1930 period of significance and is thus noncontributing. Discussion of Surrounding Area The bridge carries a 2 lane road, 2 shoulders, and 1 sidewalk over the Casselman River on the west edge of Meyersdale borough. Most of the borough was determined by PHMC to be a historic district with a period of significance of ca. 1870 to 1930. Bridge Considered Historic By Survey: No |
