| Key Facts |
| Bridge Name | Facility Carried / Feature Intersected | Location | Structure Type | Construction Date / Builder or Contractor |

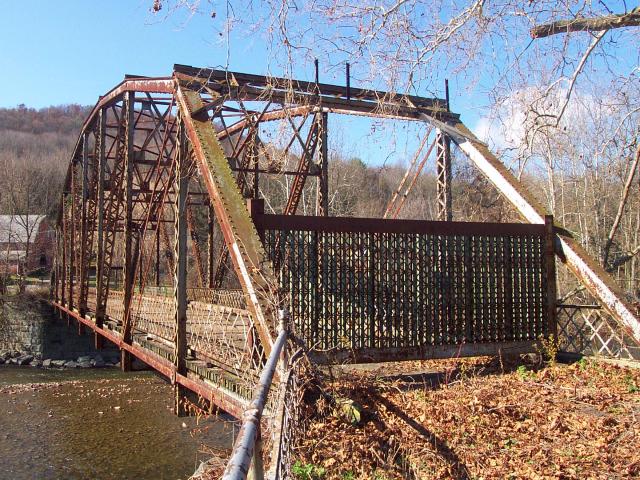

| Travis Road Bridge | Travis Road Over Sugar Creek | North Towanda: Bradford County, Pennsylvania | Metal Pinned Parker Through Truss, Stationary | 1900 By: Unknown |
| Technical Facts |
| Structure Length | Bridge Width | Roadway Width | Main Spans | Approach Spans |
| 156 Feet (47.5 Meters) | 18.4 Feet (5.6 Meters) | 17 Feet (5.2 Meters) | 1 | None |
This abandoned bridge is among the finest bridges still standing in Bradford County. As a pin-connected Parker truss, it is a significant structure type. The bridge has been abandoned, and it deserves restoration, perhaps for pedestrian use only. The bridge has been fenced off with distasteful barricades, and is a perfect example of wasted potential, a structure that if restored could truly be a destination for tourists visiting the Endless Mountains region.
Information and Findings From Pennsylvania's Historic Bridge InventoryDiscussion of Bridge The one span, 156'-long 8-panel, pin connected, Parker thru truss is dated to 1900. The upper chords and end posts are built up box sections, and the interior diagonals and verticals are toe-out channels with lacing. The outside panel diagonals and lower chords are eye bars. The floorbeams are framed into the bottoms of the verticals. Although the bridge represents the era of standardized details, it is a complete and large example of the Parker truss design used for long spans. The design concentrates capacity at the center of the span where stresses are the greatest. The bridge is historically and technologically significant because of its completeness, relative rareness of the truss design, and because it is among the oldest dozen surviving Parker thru truss bridges in the state. 08 3006 0090 0000 built in 1895 has been determined eligible by PHMC. Discussion of Surrounding Area The closed bridge carried a 2-lane road over a stream in an area of active farms. It appears to be a bypassed section of US 6, which is now to the east. The new US 220 is beyond the bridge to the west. The setting is not a potential historic district. There are many modern buildings nearby along US 6. Bridge Considered Historic By Survey: Yes
Information From Skelly and Loy Demolition Mitigation WebsiteThis bridge is a pin connected Parker thru truss bridge. It is a single span, 156’ long, 18.4’ wide bridge supported on ashlar abutments. The upper chords are built up box sections and the diagonals and lower chords are eye bars. The rolled floorbeams are framed into the bottoms of the verticals and there are pin plates on the verticals for the lower chord connections. This bridge has been determined eligible for listing in the national Register of Historic Places. |
